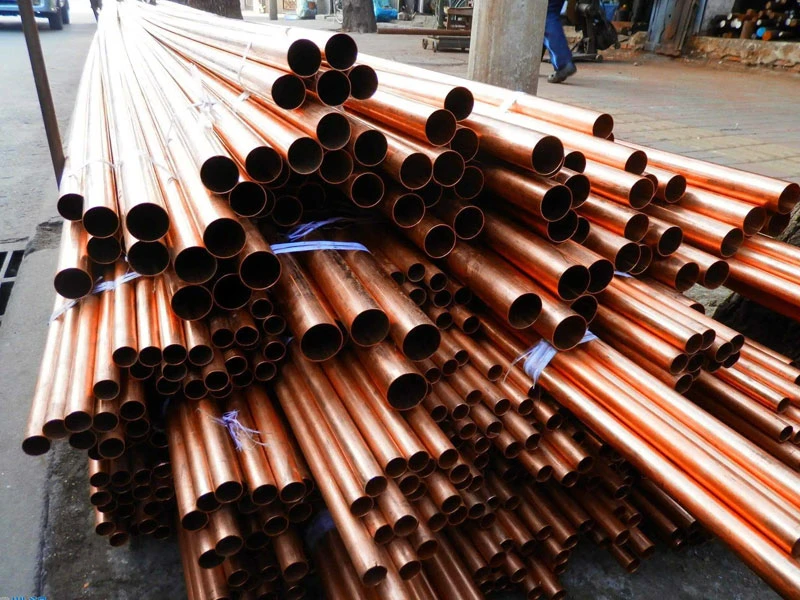

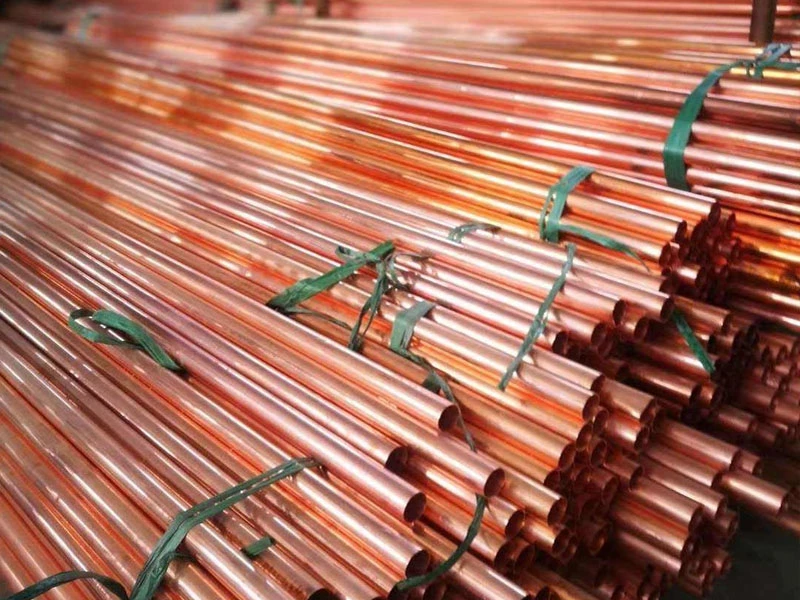

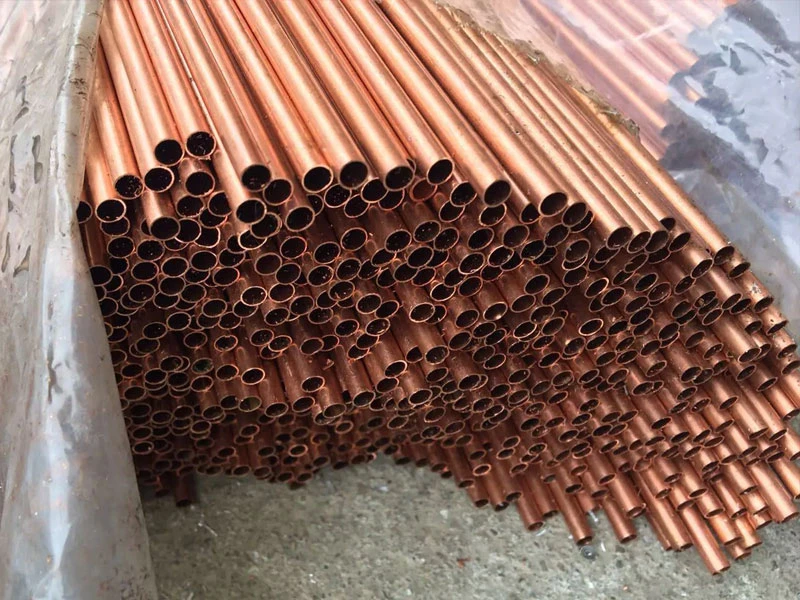

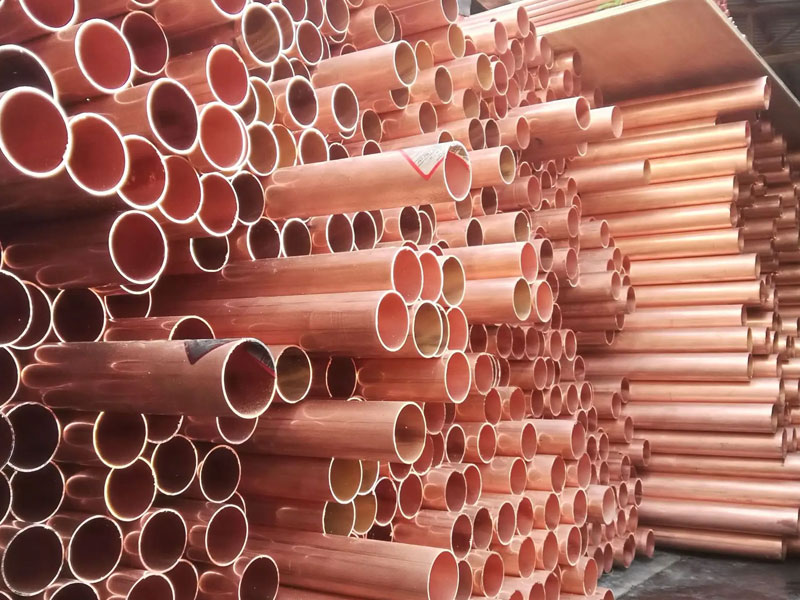

C10920 Copper Pipe/Tube

Copper tubes are also known as copper tubes. A type of non-ferrous metal pipe, which is a pressed and drawn seamless tube. Copper pipe has strong corrosion resistance, is not easy to oxidize, and is not easy to chemically react with some liquid substances, and is easy to bend and shape.

WhatsApp US

Get Best Quote



Still deciding? Get samples first! Get Sample

Parameter

Chemical Composition

Mechanical Properties

Item	Copper tube / pipe
Type	Straight copper pipe,Capillary copper pipe
Standard	GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395,ASTM B359,ASTM B188,ASTM B698,ASTM B640,etc
Shape	Round,Square,Rectangular,Oval,half-round
Round	OD:2-914mm (1/16"-36") WT:0.2-120mm(SCH5S-SCH160S)
Square	Size:22-10161016mm(1/16"-40") WT:0.2-120mm
Rectangular	Size:24-10161219mm(1/16"-48") WT:0.2-120mm
Length	1m,2m,3m,6m,or as required

Grade			Chemical Composition(%)
	GB	JIS	Cu+Ag	P	Bi	Sb	As	Fe	Ni	Pb	Sn	S	Zn	O
Refined Copper	T1	C1020	99.95	0.001	0.001	0.002	0.002	0.005	0.002	0.003	0.002	0.005	0.005	0.02
	T2	C1100	99.9	-	0.001	0.002	0.002	0.005	-	0.005	-	0.005	-	-
	T3	C1221	99.7	-	0.002	-	-	-	-	0.01	-	—	-	-
Oxygen Free Copper	TU0	C1011	99.99	0.0003	0.0001	0.0004	0.0005	0.001	0.001	0.0005	0.0002	0.0015	0.0001	0.0005
	TU1	C1020	99.97	0.002	0.001	0.002	0.002	0.004	0.002	0.003	0.002	0.004	0.003	0.002
	TU2	C1020	99.95	0.002	0.001	0.002	0.002	0.004	0.002	0.004	0.002	0.004	0.003	0.003

Grade (JIS)	Temper	Vickers Hardness (HV)	Tensile Strength (Mpa)	Elongation (%)
C1100C1201C1220etc.	M (Soft)	≤70	≥195	≥30
	Y4 (1/4H)	60-95	215-295	≥25
	Y2 (1/2H)	80-110	245-345	≥8
	Y (Full Hard)	90-120	295-395	≥3
	T (Extra Hard)	≥110	≥350	-

PACKAGING & DELIVERY

INTRODUCTION

We specialize in producing copper plates/sheets, copper coils, copper strips, copper pipes/tubes, copper rods, copper wires, copper foils, red copper, brass, white copper, bronze, aluminum plates, aluminum coils, aluminum tubes, and aluminum rods. Our products are corrosion-resistant and heat-resistant. We will provide you with high-quality, low-priced, and first-class services, and hope to become your gold medal supplier. We cooperate with many countries, including Asia, Europe, the Middle East, Africa, North America, South America, etc.

FAQ

Q1:Can you send samples?
A1:Of course, we can provide samples and courier services to customers around the world.
Q2:What if I have no import experience?
A2:We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3:How long is your lead time?
A3:If it is in stock, it is usually 5-10 days. Or, if there is no inventory, 15 days, depending on the quantity.
Q4:What are your terms of payment?
A4:30% T/T deposit in advance, 70% T/T balance within 5 days after B/L copy, 100%.Irrevocable L/C at sight, 100% Irrevocable L/C after receive B/L 30-120 days, O/A.
Q5:How is your technical support?
A5:We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you call anytime.
