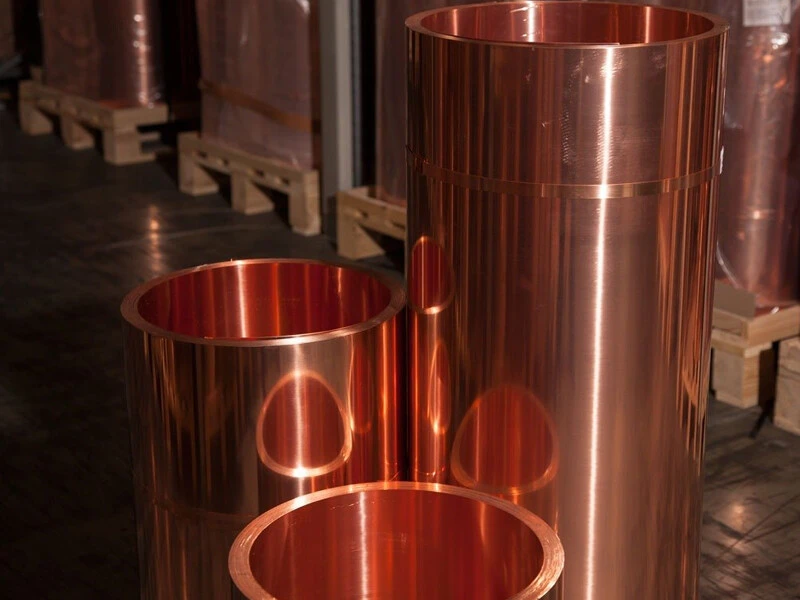

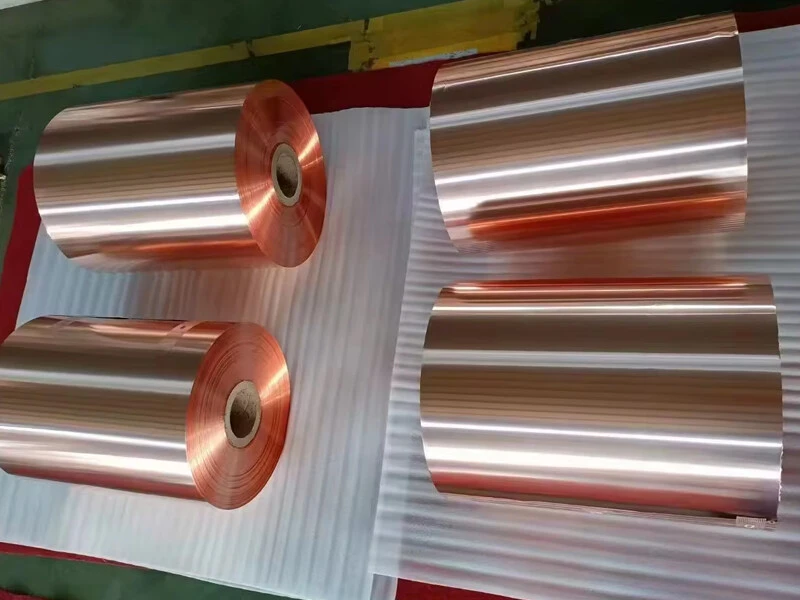

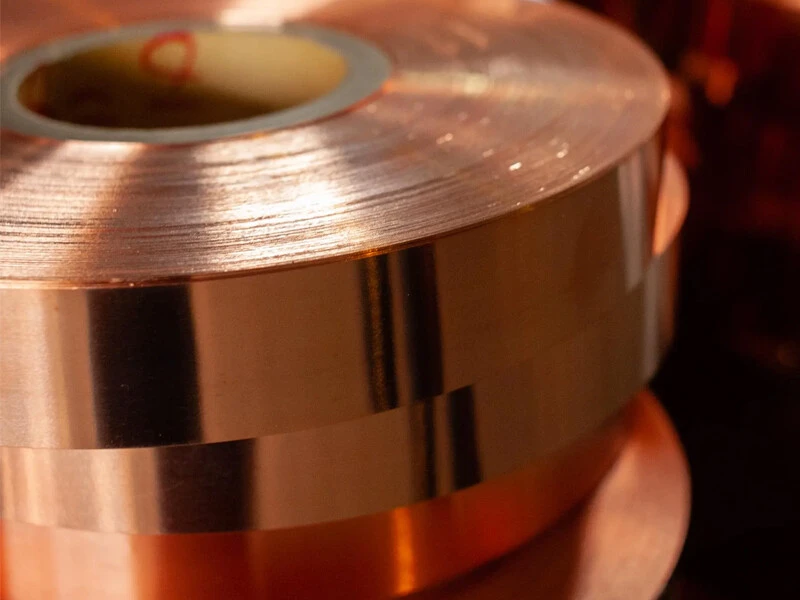

C12200 Copper Foil

Copper foil is a type of anionic electrolytic material, which is a thin, continuous layer of metal foil deposited on the substrate layer of a circuit board. It serves as a conductive material for PCBs. It is easy to adhere to the insulation layer, accept the printed protective layer, and form a circuit diagram after corrosion.

WhatsApp US

Get Best Quote



Still deciding? Get samples first! Get Sample

Parameter

Chemical Composition

Mechanical Properties

Product Name	Copper Foil
Material	copper
Size	Thickness0.006mm~0.105mm as customizedWidth 250mm~1280mm as customized
Samples	Free to supply
Purity(Cu+Ag)	Greater than or equal 99.9%
Advantage	High purity, fine microstructure, very low oxygen content. No air hole, high porosity, loose, good electrical conductivity,high surface accuracy of the mold The heat treatment process, the electrode is not directional,is suitable for fine play, fine Have good thermal properties, processing, ductility, corrosion resistance and weather resistance, etc
Application	Mainly used in the manufacturing of printed circuit boards (PCBs) and chip packaging materials, as well as in the lithium battery industry.
Payment terms	T/T,L/C
Package	Standard export seaworthy package or as required.

Grade			Chemical Composition(%)
	GB	JIS	Cu+Ag	P	Bi	Sb	As	Fe	Ni	Pb	Sn	S	Zn	O
Refined Copper	T1	C1020	99.95	0.001	0.001	0.002	0.002	0.005	0.002	0.003	0.002	0.005	0.005	0.02
	T2	C1100	99.9	-	0.001	0.002	0.002	0.005	-	0.005	-	0.005	-	-
	T3	C1221	99.7	-	0.002	-	-	-	-	0.01	-	—	-	-
Oxygen Free Copper	TU0	C1011	99.99	0.0003	0.0001	0.0004	0.0005	0.001	0.001	0.0005	0.0002	0.0015	0.0001	0.0005
	TU1	C1020	99.97	0.002	0.001	0.002	0.002	0.004	0.002	0.003	0.002	0.004	0.003	0.002
	TU2	C1020	99.95	0.002	0.001	0.002	0.002	0.004	0.002	0.004	0.002	0.004	0.003	0.003

Grade (JIS)	Temper	Vickers Hardness (HV)	Tensile Strength (Mpa)	Elongation (%)
C1100C1201C1220etc.	M (Soft)	≤70	≥195	≥30
	Y4 (1/4H)	60-95	215-295	≥25
	Y2 (1/2H)	80-110	245-345	≥8
	Y (Full Hard)	90-120	295-395	≥3
	T (Extra Hard)	≥110	≥350	-
